1 100Base-FX SC Slot Single Fiber and 1 10/100Base-T(X) Managed Fiber Media Converter JHA-MG11 Series
-
- Support 1 100Base-FX SC Slot Single Fiber and 1 10/100Base-T(X)
- With crash monitoring function, suitable for video transmission and other high-volume data applications;
- The local side device can be indicate the opposite end electrical port LINK;
- Support VLAN long packets transmission; with broadcast storm protection, balanced flow, isolate the conflict and error detection capabilities
- Power supply: AC180V ~ 260V；DC –48V；DC +24V
-
Model
Model Number: JHA-MG11
Functional Description
1*GE+1*1000Base-S/LX Ethernet Switch ，With remote management ，SNMP Manage in 2U rack
Port Description
One 1000M Fiber interface;1*GE Interface
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Dimension
Product Size: 140 X110 X30 mm(WXDXH)
Weight
1.5KG
-
产品分类：
光纤介质转换器
托管光纤媒体转换器
- 产品描述
- 尺寸
- 订单信息
- 下载

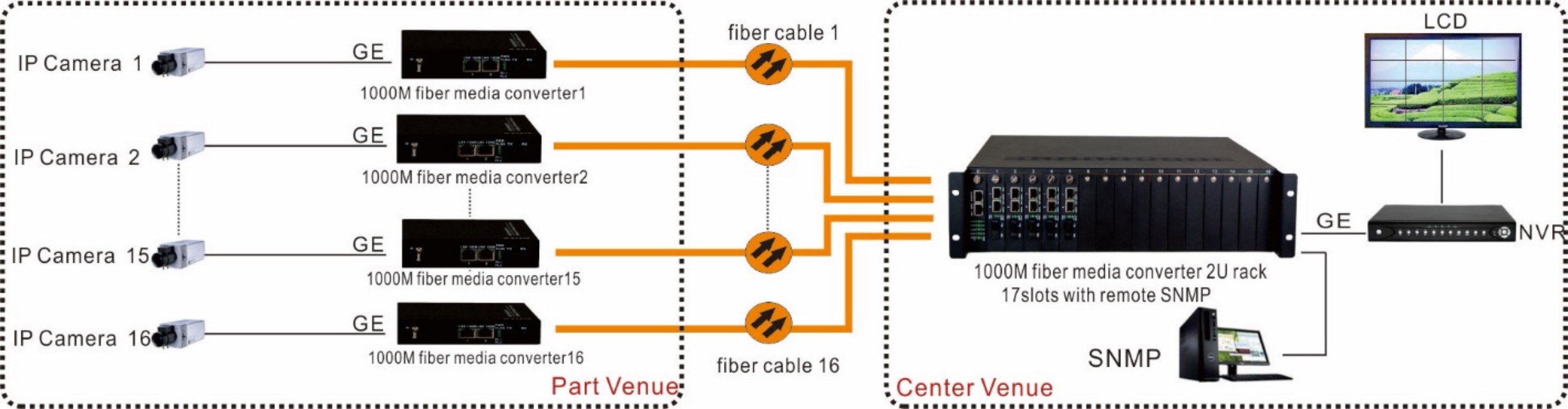

- 应用
-
Introduction
JHA-MG11 series IEEE802.3 Ethernet media converter ,can realize conversion between 10/100/1000Base-T twisted-pair and 1000Base-S / LX two kinds of medium or extended network transmission distance, mainly for ( 5/20/40/60/80/100 km ) long-distance fiber optic network transmission , fully supports of 10/100 / 1000M transfer rates.
Equipment based on FPGA Ethernet switching chip solutions, with strong local and remote management capabilities, 2U rack card type support SNMP management card ,with sound alarm function , The device work stable and reliable,low power consumption , high integration, small size.Features
♦SNMP can read and set opposite end optical port and electrical port status.
♦Single fiber and external power for choice,extends the user's demands;
♦Support across the gateway communication NMS can manage multiple branch devices
♦Multiple power mode options: AC220V, DC-48V/DC+24V, etc;
Specification
Ethernet UTP Interface
Interface rate
10/100/1000 M, half/full duplex auto-negotiation
Interface Standar
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability
4096
Connector
RJ45, support Auto-MDIX
Optical Ethernet interface
Wave Length
1310nm, 1550nm
Interface rate
1000 M, half/full duplex
Interface Standard
Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability
4096
Connector
FC/SC
Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.
Transmission distance may also be limited by fiber optic bandwidth.
Electrical and mechanical properties
Power supply
Power supply: AC180V ~ 260V；DC -36V–DC -48V
Power consumption
≤10W
Product size
140 X110 X30mm(WXDXH)
Working environment
Working temperature
-10°C ~ 50°C
Working Humidity
5%~95 % (no condensation)
Storage temperature
-40°C ~ 80°C
Storage Humidity
5%~95 % (no condensation)
-
Model
Model Number: JHA-MG11
Functional Description
1*GE+1*1000Base-S/LX Ethernet Switch ，With remote management ，SNMP Manage in 2U rack
Port Description
One 1000M Fiber interface;1*GE Interface
Power
Power supply: AC180V ~ 260V；DC –48V；DC +24V
Power consumption: ≤10W
Dimension
Product Size: 140 X110 X30 mm(WXDXH)
Weight
1.5KG
-
