1 1000Base-FX and 1 10/100/1000Base-T(X) Managed Fiber Media Converter JHA-MG11 Series

- Support 1 1000Base-FX and 1 10/100/1000Base-T(X) Managed Fiber Media Converter
- The electrical port supports 10/100/1000M, full/half duplex self-adaptive/mandatory function
- The electrical port supports MDI/MDIX automatic identification
- Support 1*9 modules and SFP modules (meet DMI function)
- Multiple power mode options: AC220V, DC-48V/DC+24V.

Model No.	Description of Goods
JHA-MG11	Management fiber media converter,10/100/1000M Multimode, Dual Fiber, 2Km, SC Connector
JHA-MG11-20	Management fiber media converter,10/100/1000M Single-mode, Dual Fiber, 20Km, SC Connector
JHA-MG11W-20	Management fiber media converter,10/100/1000M Single-mode, Single Fiber, 20Km, SC Connector
JHA-MFS11-60	Management fiber media converter,10/100/1000M LCConnector
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional.

产品分类：

托管光纤媒体转换器

联系我们

产品咨询

产品描述

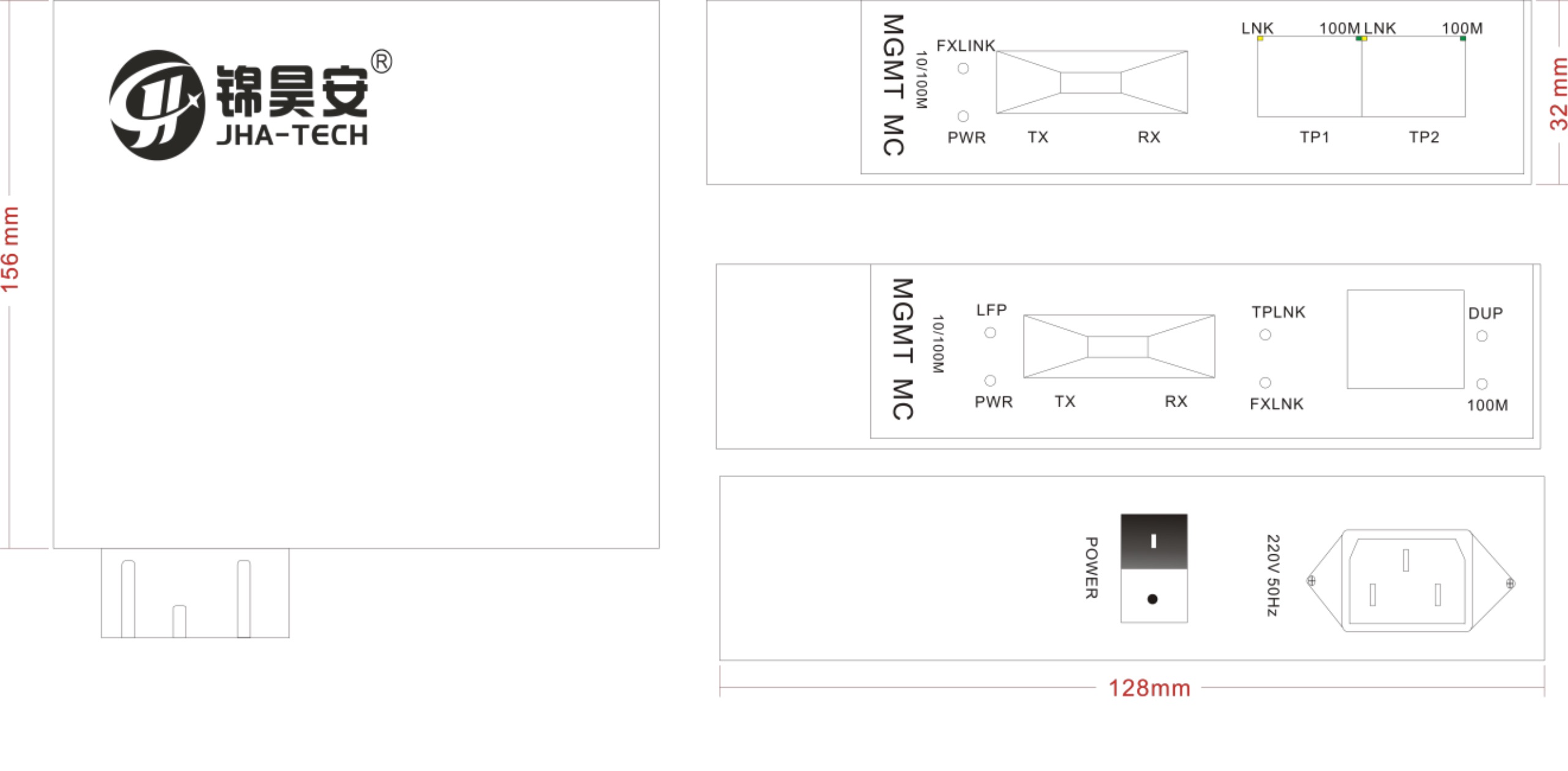

尺寸
订单信息
下载
应用

Introduction

JHA-MG11 is a 10/100/1000M self-adaptive network-managed fiber optic transceiver with one 100M optical port and one 10/1000Base-TX self-adaptive Ethernet RJ45 interface. The product design conforms to the Ethernet standard, adds lightning protection and anti-static protection measures, and has a wide range of operating temperature from -20°C to +70°C, with stable and reliable performance.
The network management interface of this device is simple to set up and has comprehensive functions. Support a variety of network management methods, including Snmp, Web, Console and Telnet and other network management methods, and can be
realize centralized network management of racks. The equipment can be widely used in various large-scale projects such as safe cities, rail transit, and operator network construction.

Features

◆Economical Inband Management function, support 802.3ah and TS1000

◆Powerful network management function, support WEB mode and simple network management protocol SNMP network management mode

◆Support hot swap, easy installation, complete status indicators, clear working status

◆Easy installation, complete status indicator lights, clear working status at a glance

◆Support 2U rack (16 channels) and independent rack use. Independent desktop built-in professional communication power supply, rack supports dual power redundant backup power supply (supports OLP function)

Specification

Ethernet UTP Interface
Interface rate	10/100/1000M, half/full duplex auto-negotiation
Protocol standard	IEEE 802.3 10Base-T Ethernet，IEEE 802.3u 100BASE-TX/FX Fast Ethernet，IEEE 802.3 Flow control，IEEE 802.1q VLAN，IEEE 802.1p QoS，IEEE 802.1ad Q-in Q VLAN，TS-1000
MAC Address Capability	4096
Connector	RJ45, support Auto-MDIX
Optical Ethernet interface
Wave Length	850nm,1310nm, 1550nm
Interface rate	1000 M, half/full duplex
Interface Standard	Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability	4096
Connector	FC/SC/ST
Working environment
Working temperature	-10°C ~ 50°C
Working Humidity	5%~95 % (no condensation)
Storage temperature	-40°C ~ 80°C
Storage Humidity	5%~95 % (no condensation)
LED Indicator	PWR (power supply) FX LINK/ACT (fiber connection/action) LFP (LFP function on) TX LINK/ACT (connection/action of electrical port) TX SPD (Transmission rate indication of electrical port) TX DUP (full duplex indication of electrical port)

Model No.	Description of Goods
JHA-MG11	Management fiber media converter,10/100/1000M Multimode, Dual Fiber, 2Km, SC Connector
JHA-MG11-20	Management fiber media converter,10/100/1000M Single-mode, Dual Fiber, 20Km, SC Connector
JHA-MG11W-20	Management fiber media converter,10/100/1000M Single-mode, Single Fiber, 20Km, SC Connector
JHA-MFS11-60	Management fiber media converter,10/100/1000M LCConnector
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
