4*10G光纤接口+24*10/100/1000Base-T |托管工业以太网交换机JHA-MIW4G024H
-
- 支持4个10G SFP+插槽和24个10/100/1000Base-T(X)以太网接口。
- 支持G.8032(ERPS)、IEEE802.3、IEEE802.3u、IEEE802.3z、IEEE802.3、IEEE802.3ad、IEEE802.3ab、IEEE802.1p、IEEE802.1x、IEEE802.1Q、IGMP Snooping、IPv4/IPv6优先。
- 支持CLI、SNMP、WEB管理、Console/Telnet命令行管理和syslog，采用自研环网技术，恢复时间<20ms。
- IP40额定铝合金外壳，1U机架安装。
- DC36~72V冗余电源，反极性保护。
-
-
Model No.
Description of Goods
JHA-MIW4G024H
Managed Industrial Ethernet Switch, 4 10G SFP+ Slot and 24 10/100/1000Base-T(X), DC36~72V,-40-85°C Operating Temperature
Power Supply:DC36~72V/AC 100-240V 50-60HZ Power Supply or Power Adapter is Optional.
产品分类：
工业以太网交换机
托管工业以太网交换机
- 产品描述

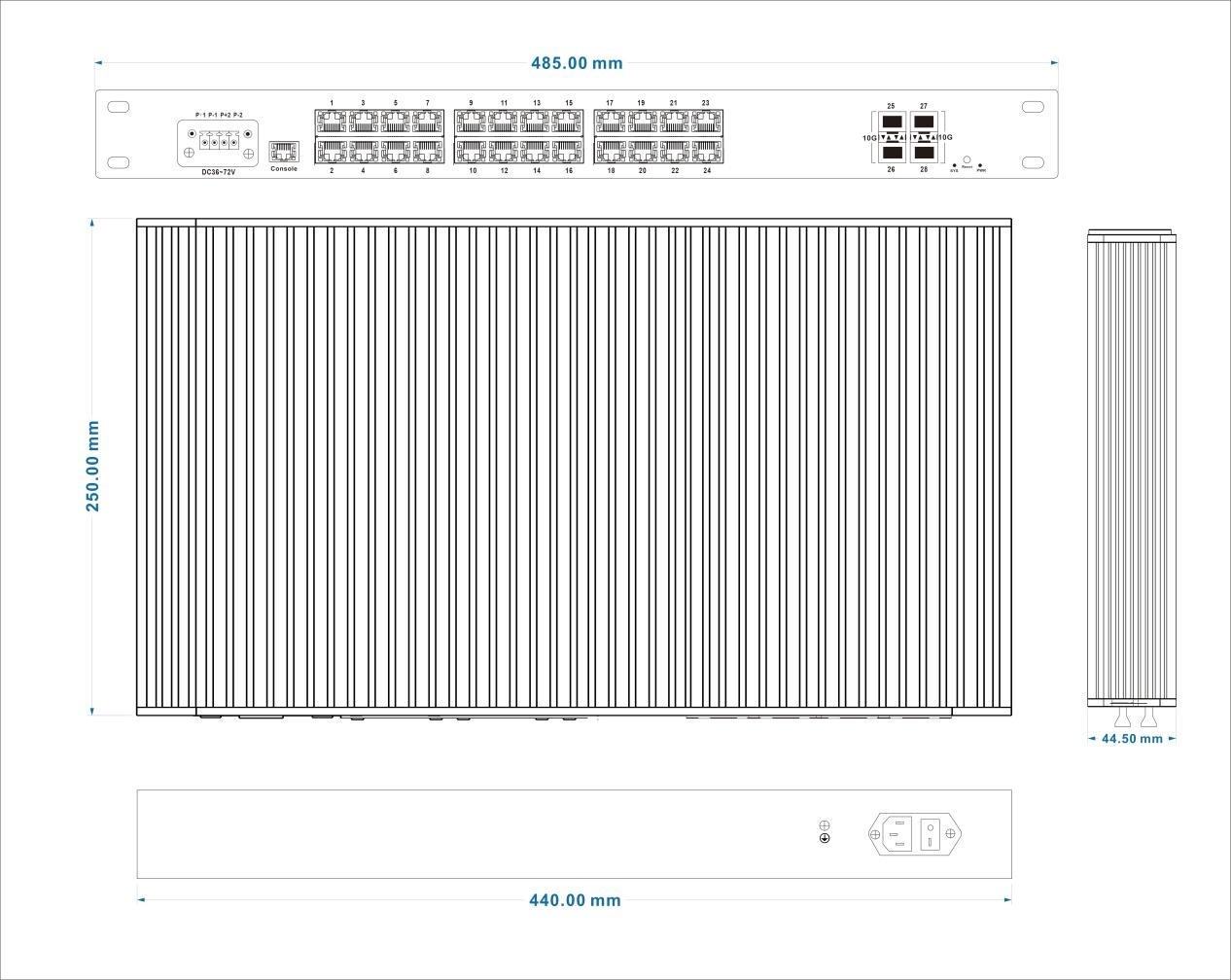

- 尺寸
- 订单信息
- 下载
- 应用
-
Introduction
JHA-MIW4G024H is a high performance, cost-effective high-end managed industrial Ethernet switch. The switch provides 24 10/100/1000Base-T(X) Ethernet port and 4 10G SFP+ slot. The use of a Ring technology (network fault recovery <20ms) the user can easily set the redundant ring network to increase network reliability, it also support WEB, CLI, Telnet/serial console, Windows utility, and SNMP management of a variety of ways, rich QoS features for data traffic control and management, support ring protocol, RSTP and STP Ethernet redundancy support port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol. The product also industrial design, and can be widely used in automotive PIS, CCTV, video surveillance systems, train control system, but also applies to any vibration shock, EMC compatibility requirements of harsh industrial applications, can meet a variety of industrial site requirements to achieve higher reliability.
Specification
Interface Fiber Port 4*10G SFP+ Slot Ethernet Port 24*10/100/1000 Base－T Manage Port 1*RJ45 Console port Power connector 4P Phoenix terminal, dual power supply redundancy,100-240VAC input LED Indicator Power indicator: PWR (green);System indicator:SYS (green); Network indicator: Speed (green) Link (yellow), optical port L/A (green) Cable type and distance Twisted pair cable 0-100m (CAT5e, CAT6) Single-mode fiber 20/40/60/80/100KM Multimode fiber 550m/2KM Optical fiber interface LC/SC Network topology & scale Ring topology Support Star topology Support Bus topology Support Tree topology Support Hybrid topology Support Electrical characteristics Input voltage DC36~72V/AC 100-240V 50-60HZ Power consumption Non-POE full load (Total power) <70W L2 Features Exchange capacity 128G Packet forwarding rate 95.23Mpps MAC address table 16K VLAN support and quantity Support 4K Report buffer 12M Forwarding delay <10us Port characteristics Cross-connect and direct-adaptive Flow control Support Jumbo frame support Support 10Kbytes Spanning Tree Protocol Support STP/RSTP/MSTP Ring network protocol Support ERPS Link aggregation Support 16 groups Multicast Support IGMP Snooping Port mirroring Support Storm suppression Support Port traffic statistics Support Port flow system Support QINQ Support Protection
Shell: IP40 protection, aluminum alloy housingIEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) IEC 61000-4-5 Level 3 (6KV/2KV) (10/700us)
IEC 61000-4-3 Level 3 (10V/m)
IEC 61000-4-4 Level 3 (1V/2V)
IEC 61000-4-6 Level 3 (10V/m)
IEC 61000-4-8 Level4 (30A/m)
IEC 61000-4-11 Level3 (10V)
EMI CLASS A
IEC 61000-4-2 Level 4 (15KV/30KV)
Free fall 0.5m
Convergence Service ACL Support 500 ACLs;Support IP standard ACL; Support MAC extended ACL;
Support IP extended ACL;
QoS Support QoS re-marking and priority mapping;Support SP, WRR queue scheduling; Support entry speed limit and exit speed limit;
Support flow-based QoS
Management function Command line Support Management serial port Support Telnet Support WEB management Support SNMP Support SNMPv1/v2c User management Support System log Support File upgrade Support Firmware upgrade Support SFP module DDM Support Environmental conditions Working temperature -40℃~+85℃ Storage/transport temperature -40℃~+85℃ Relative humidity 5%~95% does not support condensation (non-condensing) Cooling method No fan design, natural heat dissipation MTBF 100,000 hours Mechanical structure Size 440X250X44.5mm Installation method 1U19 inch rack mount Weight 3.5KG -
-
Model No.
Description of Goods
JHA-MIW4G024H
Managed Industrial Ethernet Switch, 4 10G SFP+ Slot and 24 10/100/1000Base-T(X), DC36~72V,-40-85°C Operating Temperature
Power Supply:DC36~72V/AC 100-240V 50-60HZ Power Supply or Power Adapter is Optional.
