概述
JHA-SW4024PMGH 系列交换机支持第 3 层路由协议，包括静态路由、RIP、OSPF 和 VRRP，有助于构建可扩展、可靠的网络。PIM-SM、PIM-DM等组播路由协议保证了组播组的高效路由。
这些交换机配备 4 个 10G SFP+ 端口，可用于堆叠。JHA-SW4024PMGH 系列交换机最多支持 8 个交换机以简化网络。JHA-SW4024PMGH系列交换机具有千兆以太网、SFP Slots、10G SFP+ Slots等不同的端口形式，能够为网络提供高交换容量。所有单元都由一个简单的 IP 地址标识，可以轻松配置和监控堆栈。
JHA-SW4024PMGH系列交换机提供3种带外管理口：RJ45 Console口、Micro-USB Console口和RJ45带外管理口。Micro-USB 控制台端口专为不支持 RS232 (DB9) 接口的笔记本电脑设计。客户可以使用 USB 电缆通过 CLI（命令行界面）管理交换机。RJ45 带外管理端口仅用于 Web 管理，留出 RJ45 端口用于数据传输。
产品特点
- 支持WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM多种管理维护方式。
- 支持IPV4/IPV6网管界面和网络邻居管理。
- 支持DHCP服务器、DHCPL2/L3中继代理、DHCPV6服务。
- 支持DNS主机和客户端配置管理。
- Support SNMP V1/V2C/V3 and Trap message configuration management.
- Support LLDP and LLDP-MED configuration management, ISDP configuration management
- Support switch timing plan management.
- Support port mode, port bandwidth speed limit, rate control, flow control and other management, port status panel information display.
- Support 8 groups of static and dynamic lacp aggregation.
- Support unicast/multicast/broadcast storm suppression
- Support STP/RSTP/MSTP production tree protocol and loop protection protocol, support CST and MST configuration, eliminate the second layer loop, and realize link backup
- Support port VLAN, IEEE 802.1Q VLAN, Voice VLAN, VLAN double tag QinQ configuration.
- Support MAC address aging and static MAC address configuration
- Supports IGMP and MVR multicast protocols, supports IGMP Snooping/ MLD Snooping, and meets the needs of multi-terminal high-definition video monitoring and video conference access.
- Support Auto-VoIP and UDLD port configuration
- Support IP routing and L3 port routing management
- Support ARP/RIP/OSPF/OSPFV3/BGP/Router Discovery/VRRP/ Route-Map/BFD three-layer routing
- Support QOS 802.1P and IP DSCP priority, port queue management
- Support Diffserv differentiated service quality management, including Class View/Policy View/IPv6 Class View
- Support Radius/TACACS+ server and 802.1x/Enable level/HTTP/HTTPs/Dot1x authentication
- Support configuration management to prevent DOS attacks
- Support port access security management configuration and status query
- Support port IP security management based on IGMP Snooping/IPSG/dynamic ARP inspection
- Support ACL management of IPV4/IPV6/MAC binding
- Support system log/port statistics/port connection/port cable test/SFP optical module information/EAP packet monitoring management
- Support switch restart/reset/fixed upgrade/configuration import/export/IMG dual firmware management/IP diagnosis/Chinese and English software interchange
- Support switch hardware module/CPU temperature system occupancy view, support software function setting and SNTP time setting
- Users can easily understand the working status of the equipment through the power indicator (PWR), system operation indicator (SYS), port status indicator (Link, L/A).
- Product Parameters
Hardware Features & Performance
Model
JHA-SW4024PMGH
General
Standard and Protocols
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3ae 10GBASE-SR/LR
IEEE 802.3av GVRP
IEEE 802.3x Flow control
IEEE 802.3ad Link Aggregation
IEEE 802.1v Protocol VLAN
IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1s Rapid Spanning Tree (RSTP) IEEE 802.1w Multiple Spanning Tree (MSTP) IEEE 802.1q VLANs / VLAN tagging
IEEE 802.1x Network Login Security
IEEE 802.1p QoS
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
Interfaces
24 10/100/1000Mbps POE ports
4 10G SFP+Slots
1 RJ45 Console Port
1 Micro-USB Console Port
Performance
Switching Capacity
128Gbps
Packet Forwarding Rate
95.3Mpps
MAC Address Table
32K
Flash memory capacity
256MB
The memory capacity
2G
Jumbo Frame
12KB
PoE Support
PoE port
24
PoE protocol
802.3af, 802.3at
PoE pinout
1,2,3,6
PoE management mode
Not supported
Physical& Environment
Certification
CE, FCC
Power Supply
100-240V AC, 50/60Hz
Max Power Consumption
27W (220V/50Hz)
Max Heat Dissipation
220.69 BTU/h

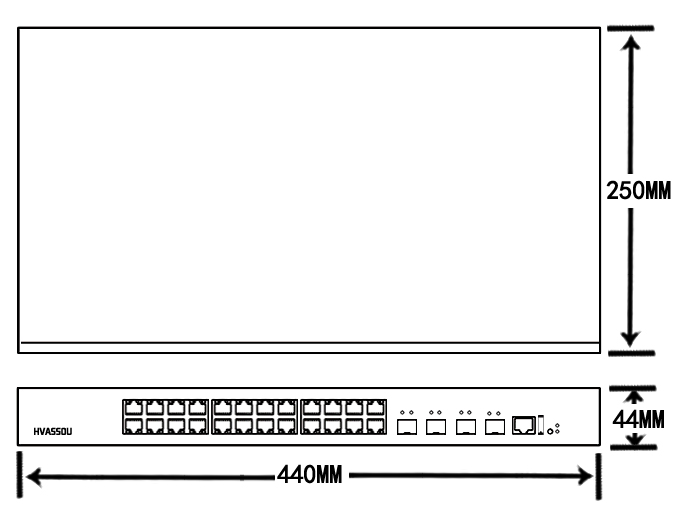

Dimensions (W × D × H)
17.3 × 16.5 × 1.7 in. (440 × 250 × 44 mm)
Fan Quantity
2 removable fan module
Operating Temperature
0°C~50°C (32°F~104°F)
Storage Temperature
-40°C~70°C (-40°F~158°F)
Operating Humidity
10% ~ 90%RH, non-condensing
Storage Humidity
5%~90%RH, non-condensing
Physical Stacking
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables
Software Features
L3 Features
-L3 Routing
*128 IPv4 Interface entries
*256 IPv4 Static Routing entries
*8K IPv4 Dynamic Routing entries
-RIP v1, v2
-OSPF v1, v2，V3
-IGMP v1, v2, v3
-Multicast Routing
*Static Multicast Route
*PIM-DM/SM
-ARP Proxy
-DHCP Server/Relay
-VRRP
-BFD
L2 Features
-Link Aggregation
*static link aggregation
*802.3ad LACP
*Up to 64 aggregation groups, containing 8 ports per group
-Spanning Tree Protocol
*802.1D STP
*802.1w RSTP
*802.1s MSTP
*32 MSTP Instance
*STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
-Loopback Detection
-Flow Control
*802.3x Flow Control
-Port Mirroring
*One-to-One
*Many-to-One
*Flow-Based
*Tx/Rx/Both
-LLDP, LLDP-MED
L2 Multicast
-1024 IGMP groups
-IGMP Snooping
*IGMP v1/v2/v3 Snooping
*IGMP Fast Leave
*MVR
*IGMP Snooping Querier
*Limited IP Multicast
*Static Multicast Forwarding
-MLD Snooping
*MLD v1/v2 Snooping
*MLD Snooping Querier
*Fast Leave
*Limited IP Multicast
*Static Multicast Forwarding
VLAN
-VLAN Group
*4K VLAN Groups
-802.1Q tag VLAN
-MAC VLAN
-Protocol VLAN
-VLAN VPN (QinQ)
-GVRP
-Private VLAN
QoS
-Class of Service
*Port Priority
*802.1p CoS/DSCP priority
*8 Priority Queues
*Queue Schedule Mode
-Bandwidth Control
*Port/Flow based Rating Limiting
*Storm Control
-Diffserv
*Diffserv Class
*Diffserv Policy
*Diffserv Service
-Auto-VoIP
-Voice VLAN
ACL
-Supports up to 3328 entries
-MAC ACL
*Source MAC
*Destination MAC
*VLAN ID
*User Priority
*EtherType
-Standard IP ACL
*Source IP
*Destination IP
-Time based ACL
-Extended IP ACL
*Source IP
*Destination IP
*Fragment
*IP Protocol
*TCP Flag
*TCP/UDP Port
*DSCP/IP TOS
Security
-AAA
-DHCP Snooping
-IP-MAC-Port Binding:Up to 32768 entries
-ARP Inspection:Up to 32768 entries
-IP Source Guard:Up to 1020 entries
-Static/Dynamic Port Security
-Up to 64 MAC addresses per port
-Broadcast/Multicast/Unicast Storm Control
*kbps/ratio/pps control mode
-IP/Port/MAC based access control
-DoS Defend
-802.1X
*Port based authentication
*MAC(Host) based authentication
*Guest VLAN
*Support Radius authentication and accountability
-Port Isolation
-MAC Filtering
-Secure web management through HTTPS with SSLv3/TLS1.0
-Secure Command Line Interface(CLI) management with SSHv1/SSHv2
Management
-Web-based GUI
-Command Line Interface(CLI) through console port, telnet
-SNMPv1/v2c/v3
-SNMP Trap/Inform
-RMON (1,2,3,9 groups)
-DHCP Option82
-CPU Monitoring
-Cable Diagnostics
-Access Control
-SNTP
-系统 日志
-双 图像
-IPv6 管理
- PPPoE电路 ID
-HTTP/TFTP 文件 传输
MIBs
-MIB II (RFC1213)
-接口 MIB (RFC2233)
-以太网接口 MIB (RFC1643)
-桥接 MIB (RFC1493)
-P/Q 桥 MIB (RFC2674)
-RMON MIB (RFC2819)
-RMON2 MIB (RFC2021)
-Radius 记账 客户端 MIB (RFC2620)
-Radius 认证 客户端 MIB (RFC2618)
-远程 Ping、 Traceroute MIB (RFC2925)
-支持 JHA 私有 MIB
-
