16 Slots 2U 19″ Rack Mount Chassis JHA-E16
-
- Provides housing for up to 16 JHA series media converters.
- Support AC220V and DC48V two power supply, suitable for a variety of work environments.
- Each card modules are hot swappable.
- Modular power supply design, easy maintenance, better shielding, preventing the normal operation of the power generated electromagnetic signal interference module group.
- Standard chassis can be installed in the engine room rack, easy to managed.
- Simultaneously inserted 16 fiber optic transceivers, each of the transceiver module can be different of rates.
-
Dimension
-
Order Information
Model No.
Description of Goods
JHA-E16-2A
16 Slots 2U Rack Mount Chassis for Card-Type Media Converter, Dual Power, AC110-240V
JHA-E16-2D
16 Slots 2U Rack Mount Chassis for Card-Type Media Converter, Dual Power, DC48V
产品分类：
光纤介质转换器
2U 19英寸机架式机箱
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
16 Slots 2U 19″ Rack Mount Chassis for Card-Type Media Converter
Introduction
JHA-E16 is a 16-slot 19″ Rack-Mount Chassis System provides housing for up to 16 JHA series media converters. Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. JHA-E16 rack-mount chassis eliminates the external power adapters for JHA series media converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple JHA series converters.
Features
♦ Provides housing for up to 16 JHA series media converters.
♦ Support AC220V and DC48V two power supply, suitable for a variety of work environments.
♦ Each card modules are hot swappable.
♦ Modular power supply design, easy maintenance, better shielding, preventing the normal operation of the power generated electromagnetic signal interference module group.
♦ Standard chassis can be installed in the engine room rack, easy to managed.
♦ Simultaneously inserted 16 fiber optic transceivers, each of the transceiver module can be different of rates.
♦ Power protection: Overvoltage protection, overcurrent protection, short circuit protection.
♦ All-aluminum design, sophisticated appearance, good ventilation lightweight thermal design to ensure normal and stable operation of the system.
Specification
Slots Provided
16 Slots Structure
2 U Rack mounted Power Input
AC 85~265V 50/60Hz Power Output
DC 5V 16A Power Configuration
Redundant Power Supply LED Indication
Power Max Power Consumption
95W
Operating Temperature
-20~70℃ Working Humidity
5%~90% Storage Temperature
-40~70℃ Storage Humidity
5% to 90% Non-Condensing Dimensions
485*293*90mm(L*W*H)
Certification
CE, FCC, RoHS
Warranty
3-years
-

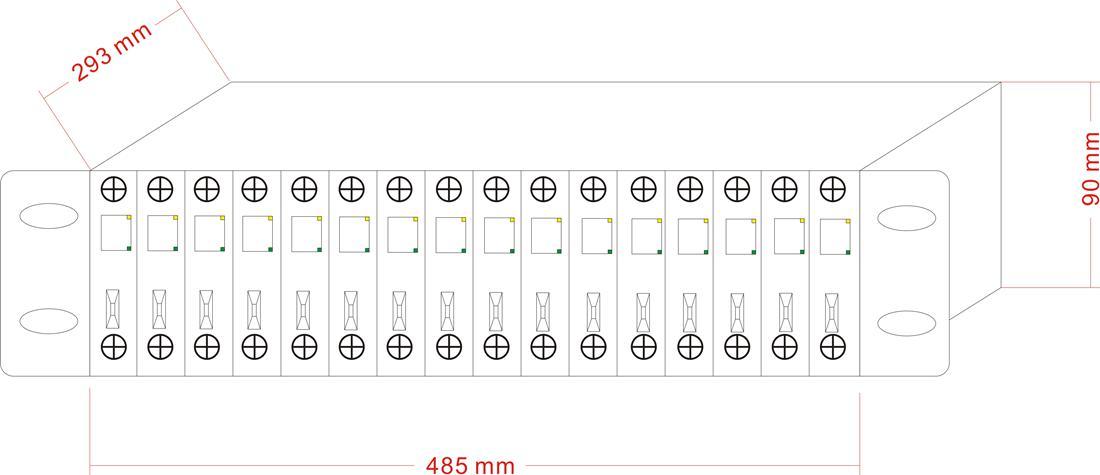

Dimension
-
Order Information
Model No.
Description of Goods
JHA-E16-2A
16 Slots 2U Rack Mount Chassis for Card-Type Media Converter, Dual Power, AC110-240V
JHA-E16-2D
16 Slots 2U Rack Mount Chassis for Card-Type Media Converter, Dual Power, DC48V
