5 10/100TX | Unmanaged Industrial Ethernet Switch JHA-IF05M
-
- Support 5 10/100Base-T(X) Ethernet port.
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted.
-

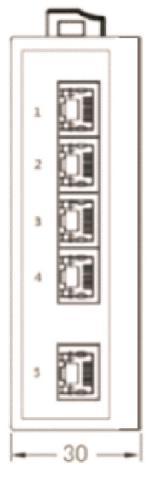

Dimension
-
Order Information
Model No.
Description of Goods
JHA-IF05M
Unmanaged Industrial Ethernet Switch, 5 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional.
产品分类：
工业以太网交换机
非网管工业以太网交换机
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
Introduction
JHA-IF05M is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.
JHA-IF05M support 5 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Specification
Protocol Standard
IEEE802.3, IEEE802.3u, IEEE802.3x Flow Control
IEEE802.3x flow control, back press flow control Switching Performance
Forwarding Rate: 0.744MppsTransmission Mode: Store and ForwardPacket Buffer Size: 512KSystem Exchange Bandwidth: 1GbpsMAC Table Size: 1K Delay Time: < 3μs
Ethernet Port
10/100Base-T(X) auto speed control, half/full duplex and MDI/MDI-X auto-adaptation LED Indicator
Power Indicator: P1, P2Port Indicator: LINK / ACT Power Supply
Input Voltage: DC10-58VConnector: 4 bit 5.08mm removable terminal blockFull Load: <3WProtection Mechanism: overload protection, reverse connection protection, redundancy protection Mechanical Structure
Shell: IP40 protection, aluminum alloy housingDimension: 118*92*30mm( L*W*H )Weight: 400gInstallation: DIN-Rail mounting, wall mounting Operating Environment
Operating Temperature: -40-85°CStorage Temperature: -40-85°CAmbient Relative Humidity: 5%-95% (non-condensing) Industry Standards
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class AEMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)EN61000-4-3 (R/S), Level 3 at 10V/mEN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)EN61000-4-5 (Surge), Level 4 at 4kV EN61000-4-6 (CS), Level 3 at 10V/m
EN61000-4-8, Level 5 at 100A/m
Shock:IEC 60068-2-27
Free Fall:IEC 60068-2-32
Vibration:IEC 60068-2-6
Certification
CE, FCC, RoHS MTBF
>100,000 Hours Warranty
5-years -
Dimension
-
Order Information
Model No.
Description of Goods
JHA-IF05M
Unmanaged Industrial Ethernet Switch, 5 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional.
