8 10/100TX and 1 1000X SFP Slot | Unmanaged Industrial Ethernet Switch JHA-IGS10F08

- Support 1 1000Base-X SFP slot and 8 10/100Base-T(X) Ethernet port.
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted.
Dimension

Order Information

Model No.	Description of Goods
JHA-IGS10F08	Unmanaged Industrial Ethernet Switch, 1 1000Base-X SFP Slot and 8 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature
Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional.

产品分类：

工业以太网交换机

非网管工业以太网交换机

联系我们

产品咨询

产品描述
尺寸
订单信息
下载
应用

Introduction

JHA-IGS10F08 is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment.

JHA-IGS10F08 support 1 1000Base-X SFP slot and 8 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.

Specification

Protocol Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Flow Control	IEEE802.3x flow control, back press flow control
Switching Performance	Forwarding Rate: 4.16MppsTransmission Mode: Store and ForwardPacket Buffer Size: 1MBackplane Bandwidth: 5.6Gbps MAC Table Size: 8K Delay Time: < 4μs
Ethernet Port	10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation
Fiber Port	1000Base-X SFP slot
LED Indicator	Power Indicator: PWRPort Indicator: LINK / ACT
Power Supply	Input Voltage: DC10-58VConnector: 6 bit 5.08mm removable terminal blockFull Load: <5WProtection Mechanism: overload protection, reverse connection protection, redundancy protection
Mechanical Structure	Shell: IP40 protection, aluminum alloy housingDimension: 14310448mm( LWH )Weight: 550gInstallation: DIN-Rail mounting, wall mounting
Operating Environment	Operating Temperature: -40-85°CStorage Temperature: -40-85°CAmbient Relative Humidity: 5%-95% (non-condensing)
Industry Standards	EMI:FCC Part 15 Subpart B Class A, EN 55022 Class AEMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)EN61000-4-3 (R/S), Level 3 at 10V/mEN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port) EN61000-4-5 (Surge), Level 4 at 4kV EN61000-4-6 (CS), Level 3 at 10V/m EN61000-4-8, Level 5 at 100A/m Shock:IEC 60068-2-27 Free Fall:IEC 60068-2-32 Vibration:IEC 60068-2-6
Certification	CE, FCC, RoHS
MTBF	>100,000 Hours
Warranty	5-years

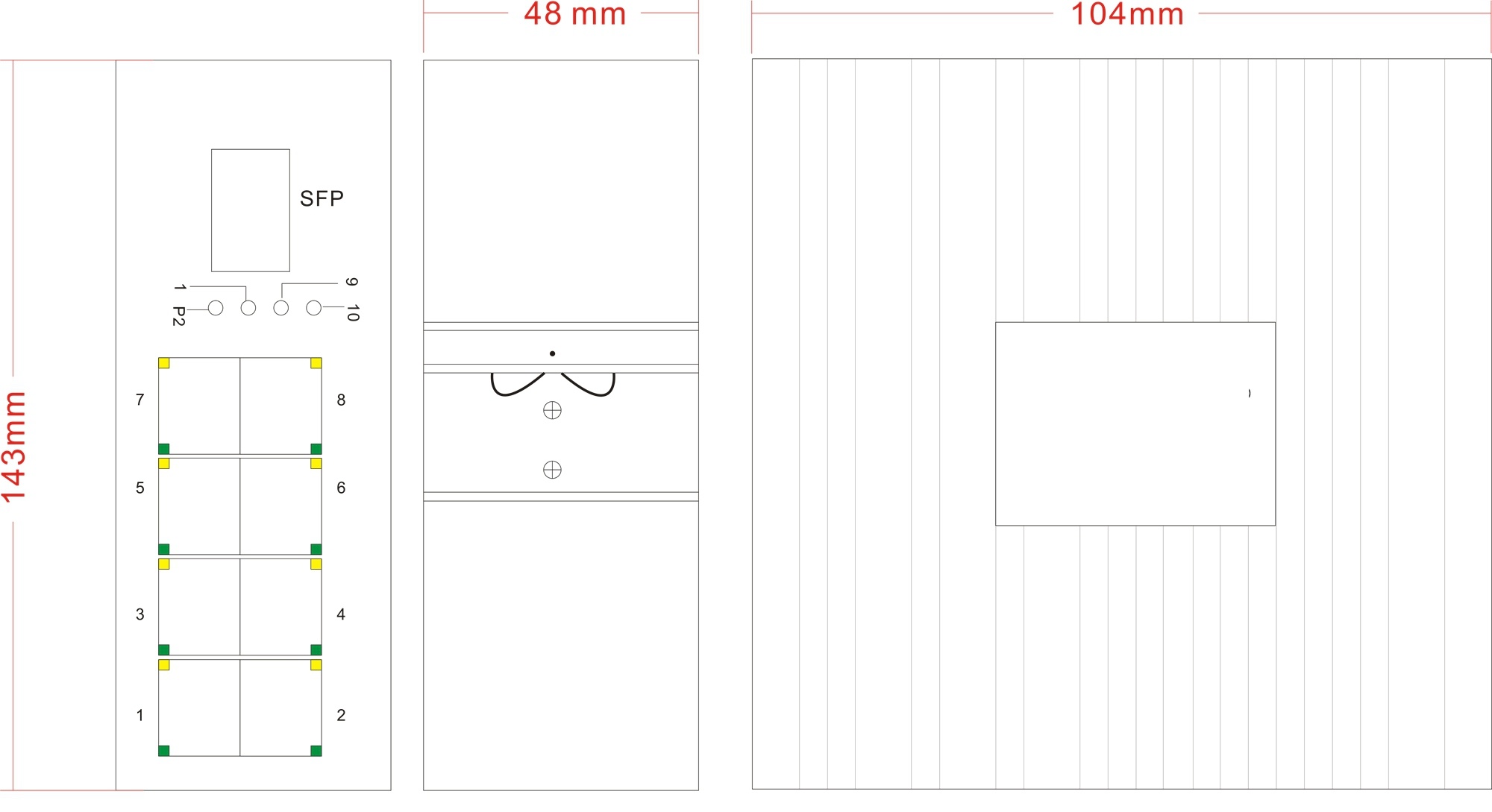

Dimension

Order Information

Model No.	Description of Goods
JHA-IGS10F08	Unmanaged Industrial Ethernet Switch, 1 1000Base-X SFP Slot and 8 10/100Base-T(X), DIN-Rail, DC10-58V, -40-85°C Operating Temperature
Power Supply: DC24V DIN-Rail Power Supply or Power Adapter is Optional.
