1*10/100TX – 2*100FX | Fiber Media Converter,JHA-F21
-
- Support 2 100FX Fiber Port and 1 10/100Base-T(X) Ethernet port.
- It supports TCP / IP, PPPOE, DHCP, ICMP, NAT protocol.
- Ports support Auto-MDI / MDIX auto-flip.
- Support store and forward mode.
- Input Voltage:DC5V1A
-
-
Model No.
Description of Goods
JHA-F21
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Multi-mode, Dual Fiber, 2Km, SC Connector
JHA-F21-20
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Single-mode, Dual Fiber, 20Km optional, SC Connector
JHA-F21W-20
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Single-mode, Single fiber, 20Km optional, SC Connector
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
产品分类：
光纤以太网交换机
非网管光纤以太网交换机
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
Introduction
JHA-F21 series fiber media converter complies with IEEE802.3 standards, It is designed to convert data signal between 100Base-FX and 10/100Base-TX fast Ethernet. The media converter is connected between fiber cable and twisted cable, extend your Ethernet network beyond the 100-meter limit imposed by copper cable.
This converter model can be used as slide-in module to the 14-slot 19" Rack-Mount Chassis.Converter is transparent to all protocols, can be used all all areas as Fiber to The Home, Fiber to the Business or Fiber to The Curb.Features
♦ Unique IC solutions, the chip temperature low, to get rid of plus cooling system, flow control and reduce broadcast storms.
♦ High-quality integrated photovoltaic module provides good optical properties and electrical properties to ensure reliable transmission, long life.
♦ Operating Mechanism broadcast filtering, address auto-learning and auto-update feature and store and forward.
♦ It supports up to 1916 byte long data packet transmission.
♦ Missing link to provide remote diagnostics, electrical interface and optical port link link connection diagnostics, dynamic data transmission, full-duplex / half duplex, speed light, easy installation and later maintenance.
♦ Ultra-low power consumption of less than 2.5W (Input: AC110 ~ 260V), low heat, stable operation for a long time.
Specification
Protocol Standard
IEEE802.3, IEEE802.3u, IEEE802.3x Flow control, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
Wavelength
850nm/1310nm/1550nm
Transmission Distance
Cat5 100m
Multimode, Single/Dual-fiber 2Km
Single Mode, Single-fiber 20/40/60/80/100Km
Single Mode, Dual-fiber 20/40/60/80/100/120Km
Ethernet Port
10/100M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port
Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Single Mode, Dual-fiber SC/FC (diameter 9/125μm )
Exchange Attribute
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 1 K
Cache: 1 Mbit
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
BER: <1/1000000000
LED Indicator
PWR( Power Supply )
LINK/ACT(Ethernet port communication / action )
FX ( Optical signal )
Power Supply
Power Input: DC5V1A
Full Load: <2.5 W
Working Environment
Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

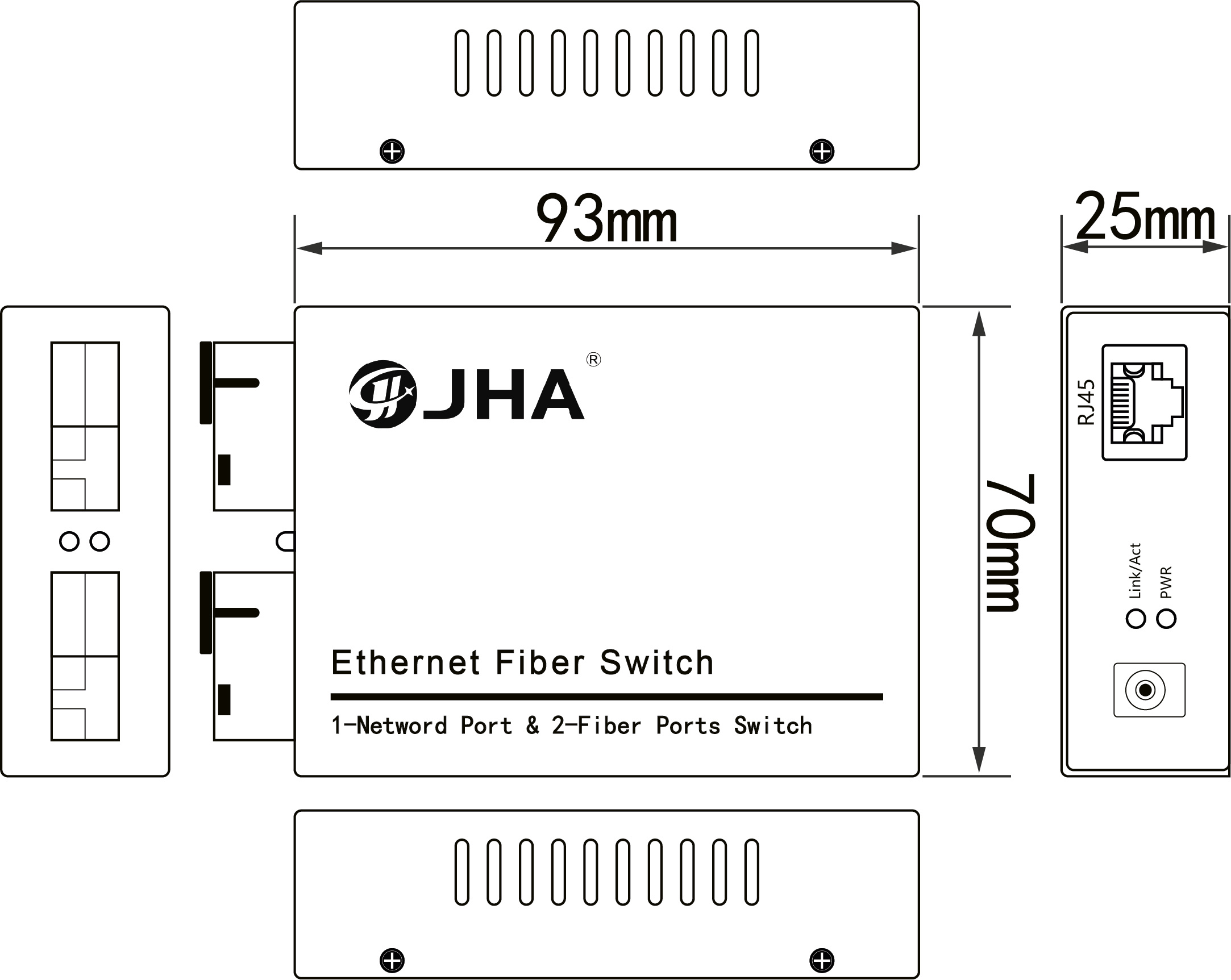

Dimension
93*70*25mm ( L * W * H )
Certification
CE, FCC, RoHS
Warranty
3-years
-
-
Model No.
Description of Goods
JHA-F21
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Multi-mode, Dual Fiber, 2Km, SC Connector
JHA-F21-20
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Single-mode, Dual Fiber, 20Km optional, SC Connector
JHA-F21W-20
2 100Base-FX and 1 10/100Base-T(X) RJ45 Port,Single-mode, Single fiber, 20Km optional, SC Connector
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 2Km/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
JHA-F21(1).pdf
464.9KB
