16*10/100/1000TX – 16*1000X SFP Slot | Fiber Ethernet Switch JHA-FGS16E16
-
- Support 16 1000X SFP Slot and 16 10/100/100Base-T(X) Ethernet port
- Support MAC address self-learning;
- Support port parallel function;
- The optical port supports 100M and 1000M full-duplex mode;
- Support LFP link failover;
-
-
Model No.
Description of Goods
JHA-FGS16E16
16 10/100/1000Base-X SFP and 16 10/100/1000Base-T(X)
产品分类：
光纤以太网交换机
非网管光纤以太网交换机
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
Introduction
This equipment 16 sets of rack-mounted fiber optic transceivers is an innovative combination of fiber optic transceivers. This machine relies on the traditional 19-inch rack switch form to integrate 16 fiber optic transceivers into one, and has the structure of a switch and transceiver. The independent transmission function of the transceiver realizes the centralized combination and centralized power supply, and solves the problems that the traditional slot-type transceiver rack is cumbersome and takes up space and is difficult to manage. The cluster rack-mounted fiber optic transceiver is equipped with 16 100/1000M adjustable SFP optical ports and corresponding 16 10/100/1000M adaptive Ethernet ports. Free adjustment between mega transceivers. All ports support non-blocking, full line-speed forwarding, with strong data processing and storage and forwarding capabilities, which can effectively avoid network congestion and ensure normal network operation.16 groups of cluster rack-mounted fiber optic transceivers are equipped with multi-function DIP switches, which can realize multi-functional management of fiber optic transceivers. Including optical transceiver LFP link failover function, direct store and forward function, flow control function, optical port 100M Gigabit conversion function.The media converter is connected between fiber cable and twisted cable, extend your Ethernet network beyond the 100-meter limit imposed by copper cable.Converter is transparent to all protocols, can be used all all areas as Fiber to The Home, Fiber to the Business or Fiber to The Curb.
Features
♦Support flow control, can prevent broadcast storm;
♦Adopt full-duplex flow control control;
♦Dynamic LED indicator, showing the working status of the equipment and providing simple troubleshooting;
♦High-performance built-in power supply centralized power supply;
♦19-inch rack-mounted steel shell design
Specification
Fixed Port
16*10/100/1000Base X SFP +16*10/100/1000Base TX
Power interface
220V Connector
Wavelength
850nm/1310nm/1550nm
Transmission Distance
Cat5 100m
Multimode, Single/Dual-fiber 2Km
Single Mode, Single-fiber 20/40/60/80/100Km
Single Mode, Dual-fiber 20/40/60/80Km
Ethernet Port
10/100M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port
Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Single Mode, Dual-fiber SC/FC (diameter 9/125μm )
Exchange Attribute
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 2 K
Switching capacity:16G
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
MTBF:50,000 hours
LED Indicator
P:Power Supply
Link/Act:1~26 Run
Power Supply
Power Input: 100~240VAC,50/60Hz
Full Load: <30 W
Working Environment
Operating Temperature: -20~70℃
Storage Temperature: -20℃~+70℃
Storage Humidity: 5% to 95% non-condensing

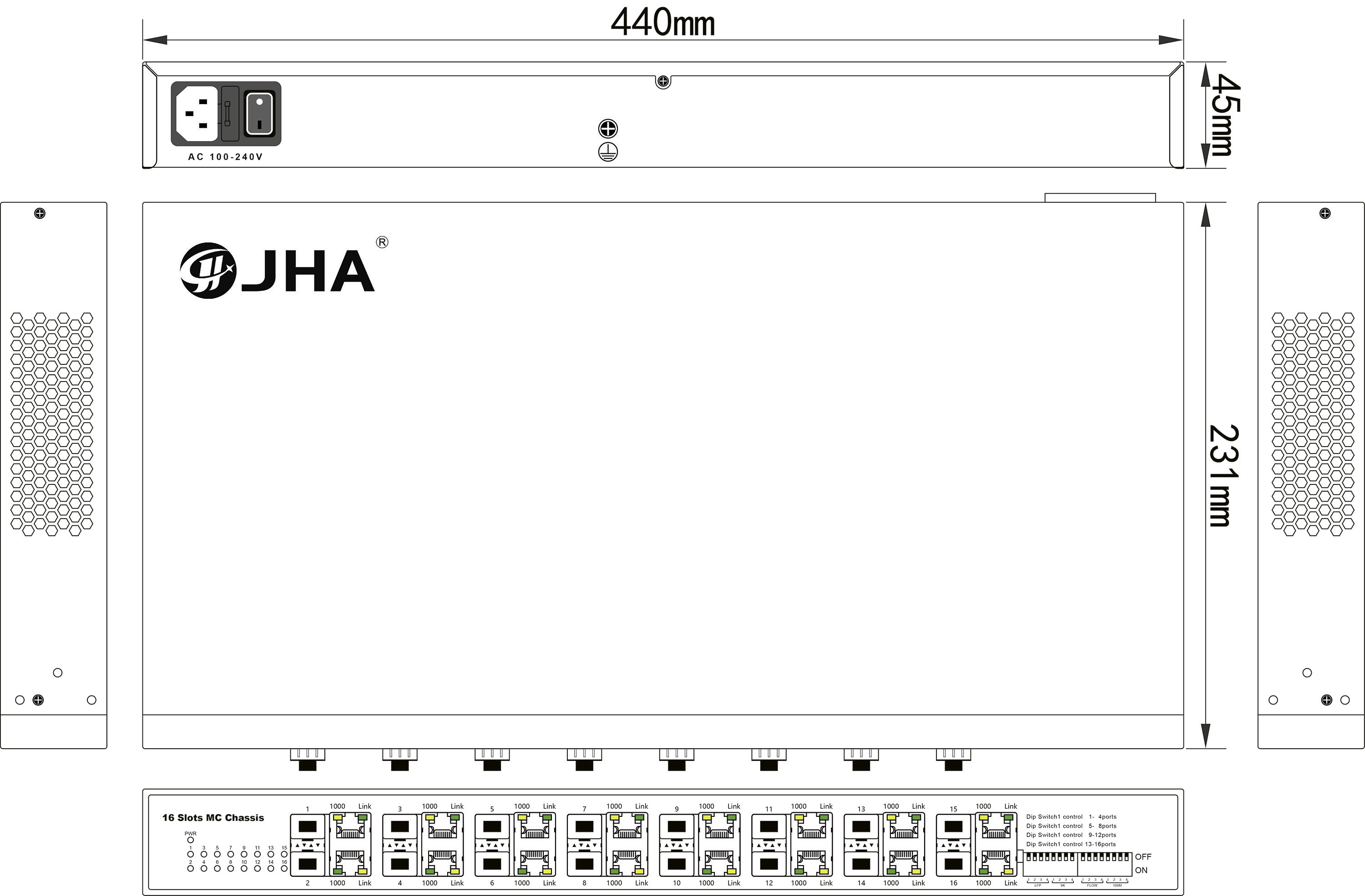

Dimension
440*231*45mm ( L * W * H ), 1U Type
Weight
3.2KG
MC&INGRESS PROTECTION
Surge protection of Power:IEC 61000-4-5 Level 3（2KV）（8/20us）
Surge protection of Ethernet port:IEC 61000-4-5 Level 4（4KV）（10/700us）
ESD:IEC 61000-4-2 Level 4 （8K/15K）
Free fall:0.5m
-
-
Model No.
Description of Goods
JHA-FGS16E16
16 10/100/1000Base-X SFP and 16 10/100/1000Base-T(X)
