24*10/100/1000TX – 2*1000FX | Fiber Ethernet Switch JHA-G224
-
- Support 2 1000FX Fiber Port and 24 10/100/1000Base-T(X) Ethernet port.
- Automatic identification of parallel/crossover lines, simplifying network erection and maintenance.
- Gigabit non-blocking wire-speed forwarding to ensure smooth network applications.
- Using store and forward mode, integrated 8K MAC address table.
- Input Voltage:DC12V3A .
-
-
Model No.
Description of Goods
JHA-G224
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Multi-mode, Dual Fiber, 550m, SC Connector
JHA-G224-20
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Single mode, Dual Fiber, 20km, SC Connector
JHA-G224W
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Single mode, Single Fiber, 20km, SC Connector
JHA-GS224
2 1000Base-X SFP Slot and 24 10/100/1000Base-T(X) RJ45 Port
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 550m/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
产品分类：
光纤以太网交换机
非网管光纤以太网交换机
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
Introduction
JHA-G224 series is a 10/100/1000M self-adaptive Fast Ethernet fiber switch, with 2 1000M Fiber ports and 24 10/100/1000Base-TX self-adaptive Ethernet RJ45 interfaces.
The product design conforms to the Ethernet standard, adds lightning protection and anti-static protection measures, and has a wide range of operating temperature from -20°C to 70°C, with stable and reliable performance.
The device can be widely used in various broadband data transmission fields,such as smart buildings, smart cities, smart communities, smart transportation, telecommunications, security, financial securities, customs, shipping, electricity, water conservancy and oil fields.Specification
Fixed Port
24*10/100/1000Base TX+2*1000Base FX
Function switch
1 N_standard mode+V_port isolation+C_flow control mode
Wavelength
850nm/1310nm/1550nm
Transmission Distance
Cat5 100m
Multimode, Single/Dual-fiber 2Km
Single Mode, Single-fiber 20/40/60/80/100Km
Single Mode, Dual-fiber 20/40/60/80/100/120Km
Ethernet Port
10/100/1000M RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port
Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Single Mode, Dual-fiber SC/FC (diameter 9/125μm )
Network protocol
IEEE 802.3 Ethernet Media Access Control Protocol
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Fiber Ethernet
IEEE 802.3x flow control
IEEE 802.1q VLAN Bridge Operation
Exchange Attribute
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 8 K
Backplane bandwidth:56G
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
Vlan:Support
Network Topology
Ring topology:Not Support
Star topology:Support
Bus topology:Support
Tree Topology:Support
LED Indicator
PWR:Power Supply
1-24: Network indicator Green/100M+Yellow/1000M
25~26: Fiber port indicator
Input Voltage
DC12V3A
Working Environment
Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

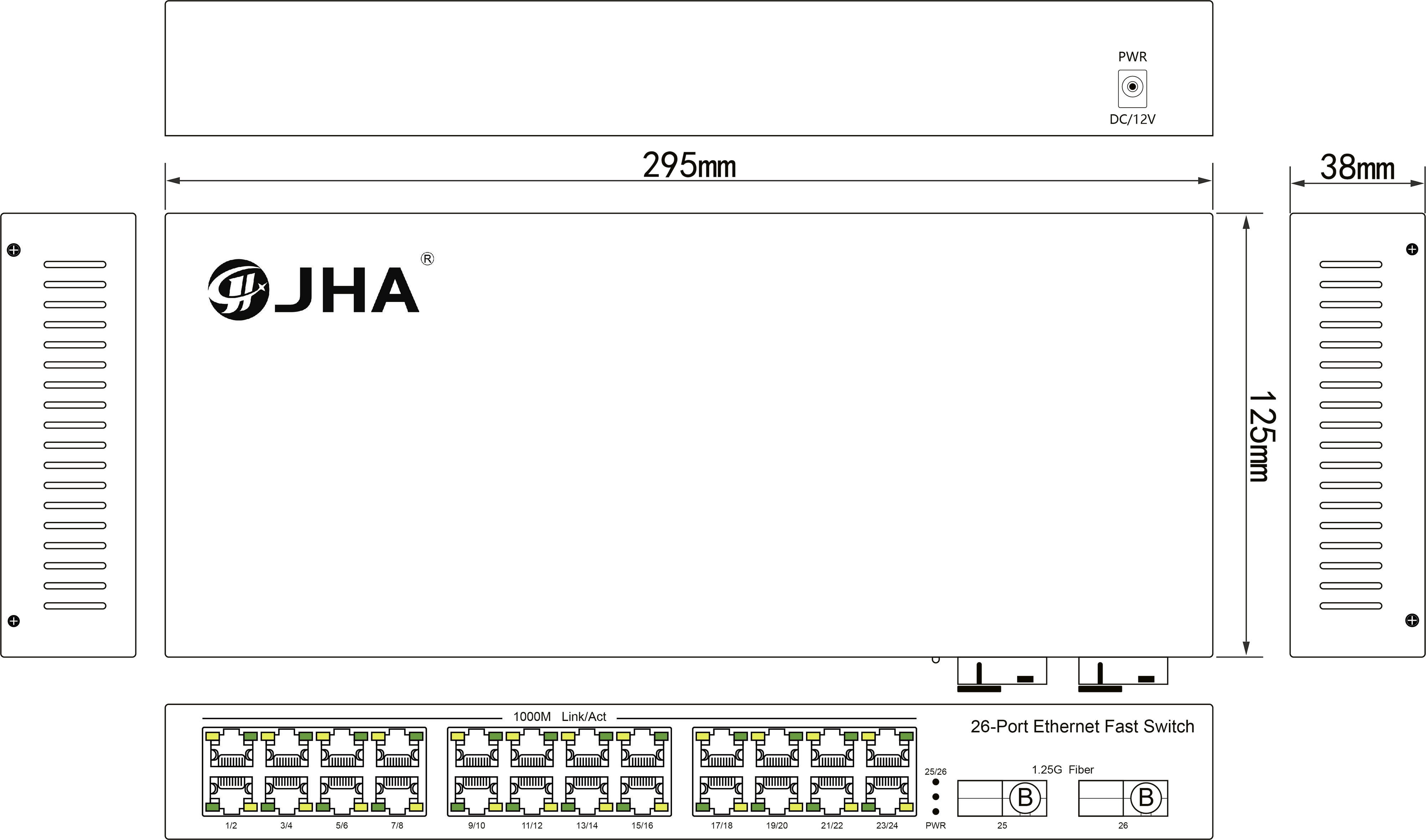

Dimension
295*125*38mm ( L * W * H )
Weight
2KG
-
-
Model No.
Description of Goods
JHA-G224
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Multi-mode, Dual Fiber, 550m, SC Connector
JHA-G224-20
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Single mode, Dual Fiber, 20km, SC Connector
JHA-G224W
2 1000Base-FX and 24 10/100/1000Base-T(X) RJ45 Port,Single mode, Single Fiber, 20km, SC Connector
JHA-GS224
2 1000Base-X SFP Slot and 24 10/100/1000Base-T(X) RJ45 Port
Fiber Connector: SC/ST/FC/LC(SFP Slot), Single Mode/Multimode, Dual Fiber/Single Fiber, 550m/20Km/40Km/60Km/80Km/100Km/120Km is Optional.
