2*10/100/1000TX – 1*1000X SFP Slot | Fiber Media Converter JHA-GS12
-
- Support 1 1000X SFP Slot and 2 10/100/1000Base-T(X) Ethernet port.
- It supports TCP / IP, PPPOE, DHCP, ICMP, NAT protocol.
- Ports support Auto-MDI / MDIX auto-flip.
- Support store and forward mode.
- Input Voltage:DC5V1A .
-
-
Model No.
Description of Goods
JHA-GS12
1 1000Base-X SFP and 2 10/100/1000Base-T(X) RJ45 Port, LC Connector
产品分类：
光纤以太网交换机
非网管光纤以太网交换机
- 产品描述
- 尺寸
- 订单信息
- 下载
- 应用
-
Features
♦Modular power supply design, function board with separate power supply design, easy to post-maintenance.
♦Unique IC solutions, the chip temperature low, to get rid of plus cooling system, flow control and reduce broadcast storms.
♦High-quality integrated photovoltaic module provides good optical properties and electrical properties to ensure reliable transmission, long life.
♦Operating Mechanism broadcast filtering, address auto-learning and auto-update feature and store and forward.
♦It supports up to 1916 byte long data packet transmission.
♦Missing link to provide remote diagnostics, electrical interface and optical port link link connection diagnostics, dynamic data transmission, full-duplex / half duplex, speed light, easy installation and later maintenance.
♦Ultra-low power consumption of less than 2.5W (Input: AC110 ~ 260V), low heat, stable operation for a long time.Introduction
JHA-GS12 series is complies with IEEE802.3 standards, It is designed to convert data signal between 1000Base-X SFP and 10/100/1000Base-TX Ethernet.
The media converter is connected between fiber cable and twisted cable, extend your Ethernet network beyond the 100-meter limit imposed by copper cable.
This converter model can be used as slide-in module to the 14-slot 19" Rack-Mount Chassis.
Converter is transparent to all protocols, can be used all all areas as Fiber to The Home, Fiber to the Business or Fiber to The Curb.Specification
Protocol Standard
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.1q, IEEE802.1p QoS,IEEE802.1d Spanning Tree
Wavelength
850nm/1310nm/1550nm
Transmission Distance
Cat5 100m
Multimode, Single/Dual-fiber 550m
Single Mode, Single-fiber 20/40/60/80/100Km
Single Mode, Dual-fiber 20/40/60/80/100/120Km
Ethernet Port
RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable
Fiber Port
Multimode, Dual-fiber SC/ST/FC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Single Fiber, SC/ST/FC (Diameter 9/125μm )
Single Mode, Dual-fiber SC/FC (diameter 9/125μm )
Exchange Attribute
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 1 K
Cache: 1 Mbit
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
BER: <1/1000000000
LED Indicator
PWR( Power Supply )
FX LINK/ACT
FDX ( Ethernet port full / half duplex mode )
TX LINK/ACT ( Ethernet port communication / action )
1000 ( 1000/100/10M transmission rate )
FX ( Optical signal )
Power Supply
Power Input: DC5V 2A
Full Load: <2.5 W
Working Environment
Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing

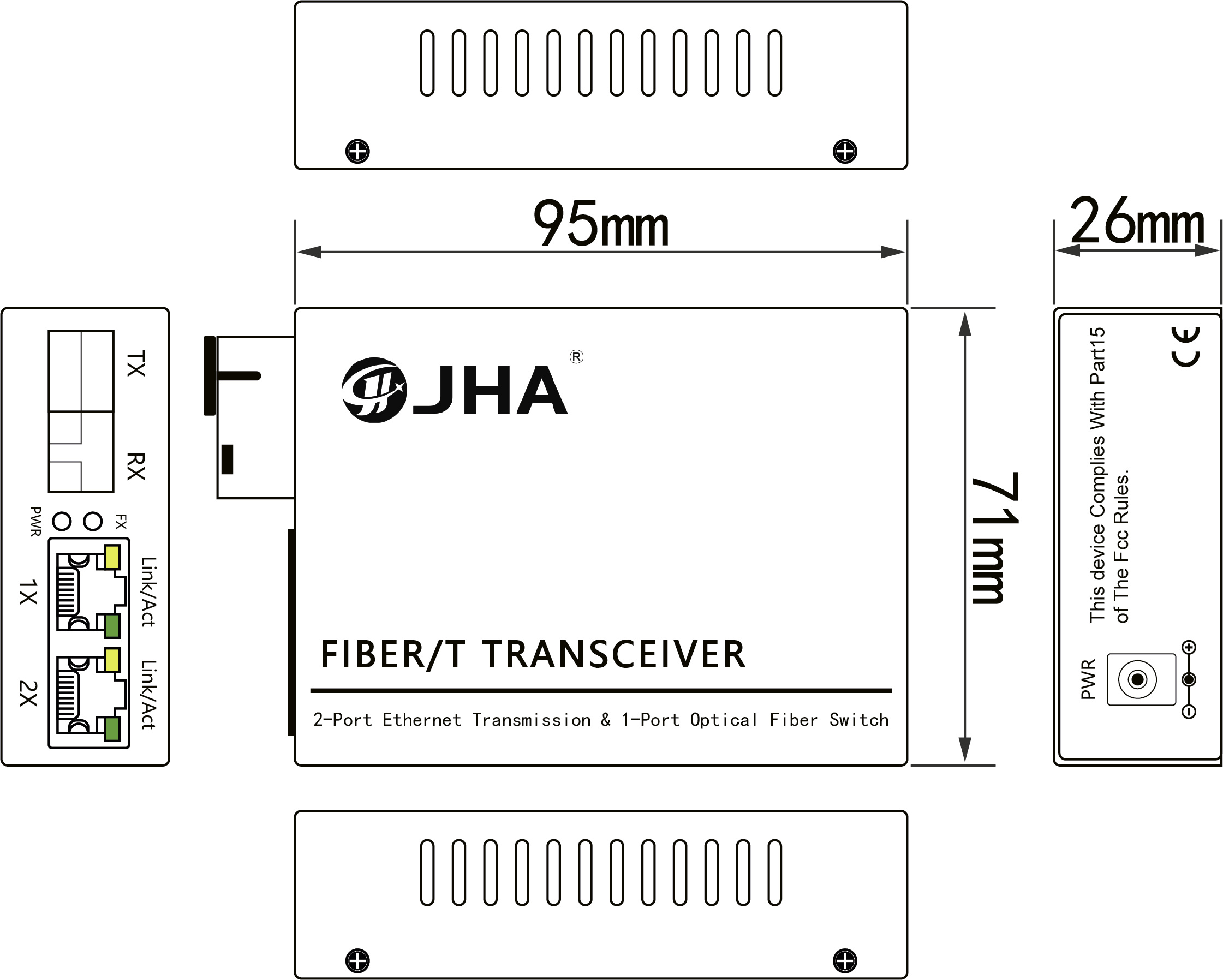

Dimension
94*71*26mm ( L * W * H )
Certification
CE, FCC, RoHS
Warranty
3-years
-
-
Model No.
Description of Goods
JHA-GS12
1 1000Base-X SFP and 2 10/100/1000Base-T(X) RJ45 Port, LC Connector
JHA-GS12(1).pdf
646.7KB
